Material: Carton steel Q235
Surface treatment: Zinc plating
Material: Carton steel Q235
Surface treatment: Zinc plating

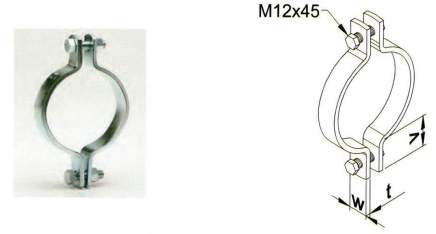

| DN | O.D.mm | t | w | v | h | Bolt & Nut |
| D50 | 60.5 | 6 | 25 | 30 | 13 | M12×45L |
| D65 | 76.3 | 6 | 25 | 30 | 13 | M12×45L |
| D80 | 89.1 | 6 | 25 | 30 | 13 | M12×45L |
| D100 | 114.3 | 6 | 30 | 30 | 13 | M12×45L |
| D125 | 139.8 | 6 | 30 | 30 | 13 | M12×45L |
| D150 | 165.2 | 6 | 40 | 30 | 13 | M12×45L |
| D200 | 215.5 | 6 | 40 | 30 | 13 | M12×45L |
