Material: ductile cast iron or cast steel
Sizes: product ranges from 12"(300mm) to 72"(1800mm)
Manufacturing: CNC or customized lathe milled
Dimensions: per drawings or samples
Customized Precast Mold
Pallets for concrete pipe making
Material: ductile cast iron or cast steel
Sizes: product ranges from 12"(300mm) to 72"(1800mm)
Manufacturing: CNC or customized lathe milled
Dimensions: per drawings or samples
Customized Precast Mold

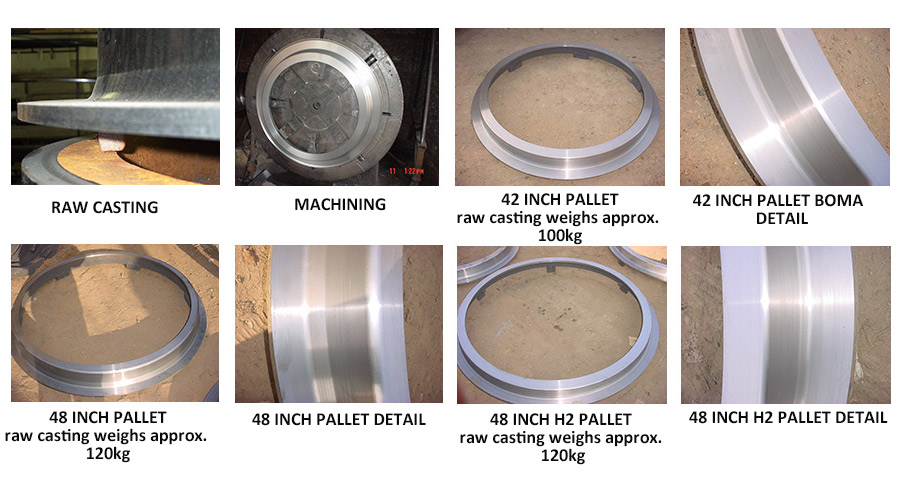

Pallets as molding dies for concrete pipe-making machinery.
These machined products called “Pallets” & “Headers” were used to form the two ends of a concrete pipe and provide a leak proof joint on assembly.
The pallet is used to form the "bell" or female end of the pipe whereas the header is used to form the "spigot" or the male end of the pipe. The pipes are used for Sanitary Sewers and Storm drains.
The pallets are generally made from Cast Iron, Ductile or SG iron and steel. They are then machined to dimensions and tolerances that are required to form a good seal with a gasket when the concrete pipe is assembled.
The dies are manufactured from 12"(300mm) to 72"(1800mm) in size and joints are designed to suit customer requirements, detailed sizes are 12"/18"/24"/30"/36"/42"/48"/54"/60"/72".
These products are critical to have a good joint in concrete pipes or boxes.
The accuracy and tolerances of these dies determine the final quality of the joint in concrete pipes/boxes.
Our products are made by high pure ductile cast iron, and milled by customized lathe or CNC, and can meet individual customer's requirements.
Some of the factors that influence its design are: Process employed in manufacture - dry cast or wet cast, Type of equipment employed, type of gasket etc.
